Display LED Panel: 7 Key Buying Factors To Know in 2026

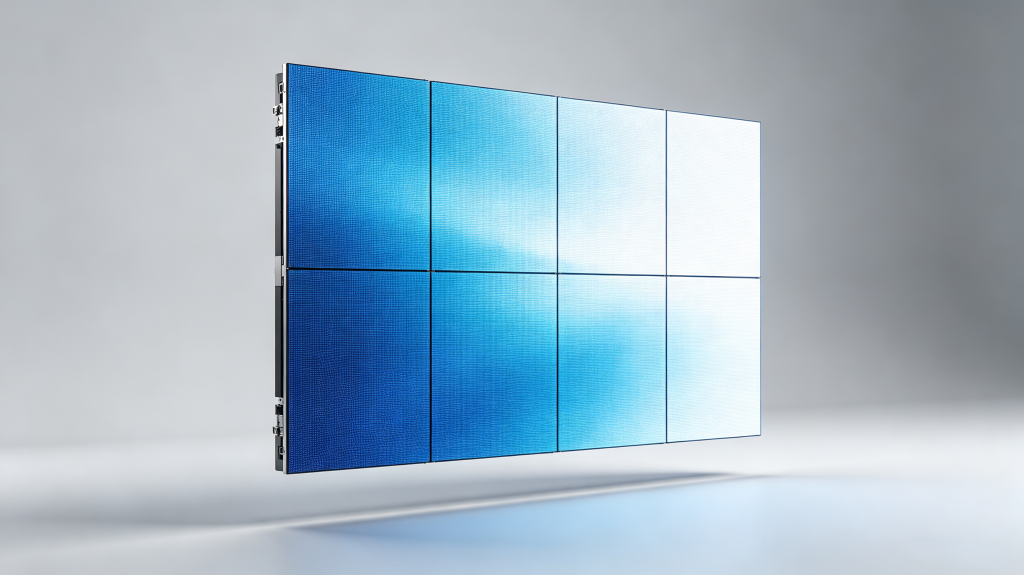

Modular display LED panel floating in clean studio with bright vivid screen

A Practical Guide to Choosing the Right Display LED Panel

Are you looking for a display LED panel? You are not alone. More businesses are choosing display LED panel solutions every year. But picking the right product can feel confusing. This guide makes it simple.

In this article, you will learn 7 key things. These will help you make a smart buying decision.

Table of Contents

What Is a Display LED Panel?

A display LED panel is a flat display module that uses light-emitting diodes. Each unit contains hundreds or thousands of individual LEDs. These work together to create bright, vivid images.

This technology produces its own light. It is much brighter than traditional displays. It is also more energy efficient. The panels are modular. You can combine units to build any screen size.

A display LED panel is perfect for both indoor and outdoor use. The flexibility makes it ideal for many business applications.

7 Key Things Before Buying a Display LED Panel

1. Pixel Pitch

Pixel pitch is the distance between two LED pixels. It is measured in millimeters. A smaller number means a sharper image.

For a display LED panel, choose a pixel pitch that matches your viewing distance. Closer viewers need a smaller pixel pitch. Distant viewers can use a larger pixel pitch.

Always check this spec first. It is the most important factor for image quality.

2. Brightness

Brightness is measured in nits. A higher nit number means a brighter display.

For outdoor display LED panel use, aim for at least 5,000 nits. For indoor use, 500 to 1,000 nits is typical. Higher brightness wastes energy indoors.

If the brightness is too low, the image will look dull. Check this spec before buying.

3. Resolution

Resolution determines how sharp your content looks. It is calculated by the number of pixels. More pixels mean a sharper image.

For a display LED panel installation, balance resolution with viewing distance. Common resolutions include 1920×1080 (Full HD) and 3840×2160 (4K).

A very high resolution on a distant screen is wasted. Match the resolution to your specific needs.

4. Color Accuracy

Color accuracy is critical for professional use. A display LED panel should reproduce colors faithfully.

Look for high gray scale performance. This ensures smooth color gradients. Poor gray scale causes color banding.

Ask the supplier for color temperature specifications. Consistent color across all panels is important.

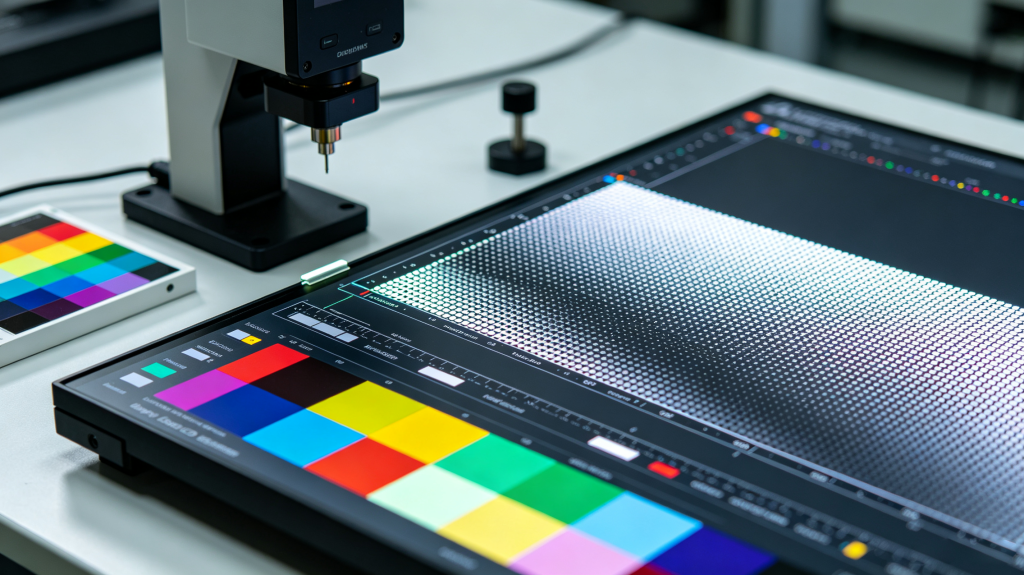

Close-up testing display LED panel pixel pitch, color accuracy and gray scale performance

5. Cabinet Design

The cabinet holds each display unit. There are two main designs.

Fixed cabinets are best for permanent installations. They are sturdy and stable. Rental cabinets are best for events. They are lightweight and easy to set up.

Magnetic mounting is another option. It allows faster installation. Consider your setup needs before choosing.

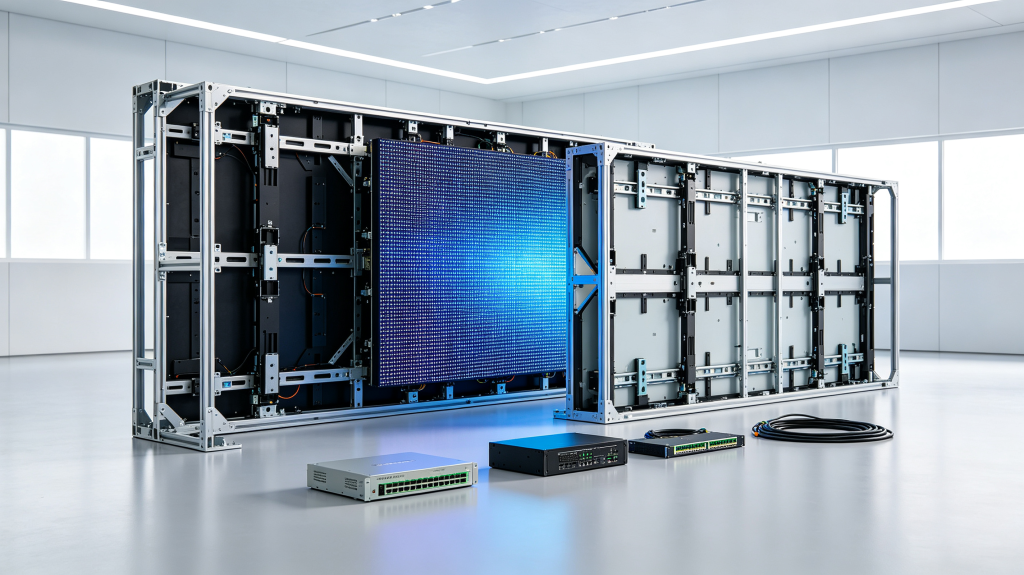

Explored view of display LED panel cabinet showing fixed and rental design differences

6. Refresh Rate

The refresh rate affects how smooth motion looks. It is measured in hertz (Hz). Higher is better.

For a display LED panel with video content, choose at least 3,840 Hz. Low refresh rates cause flickering on camera. Standard rates include 1,920 Hz, 3,840 Hz, and 7,680 Hz.

7. Total Cost

The display modules themselves are only part of the cost. Structure and mounting hardware add to it. Power supply units are needed. Installation labor can be significant.

A complete display LED panel project often costs two to three times the module price. Ask for a full itemized quote.

Common Applications

A display LED panel is used in many industries. Here are the most common uses.

Sports venues install large display LED panel units for scoreboards. Retail stores use them for storefront displays. Corporate events rely on display LED panel walls for presentations. Broadcast studios use them for background sets.

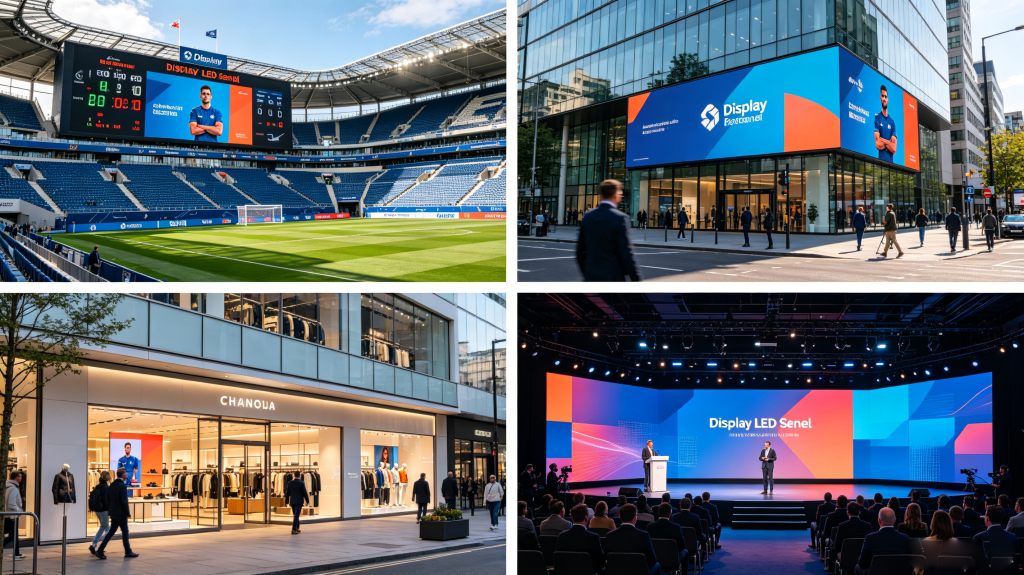

Display LED panel applications for sports venue, retail storefront, corporate event and broadcast studio

How to Choose a Supplier

Choose a supplier with years of experience. Ask for past project photos. A good supplier shares this openly.

Request a sample before ordering in bulk. Test the brightness and color quality yourself. Look for a warranty of at least 2 years.

Good communication is a sign of a reliable supplier. Choose someone who responds quickly.

FAQs

How long does a display LED panel last?

Quality units last about 100,000 hours. That is roughly 11 years at 24 hours per day. Most businesses run them 8 to 12 hours daily. This extends the lifespan significantly.

What is the best pixel pitch?

The best pixel pitch depends on viewing distance. For close viewing under 3 meters, choose P2 or P3. For distances of 5 to 10 meters, P4 or P5 works well.

Can a display LED panel be used outdoors?

It depends on the IP rating. For outdoor use, choose IP65 or higher. Indoor units lack weatherproofing and will fail outside.

How do you control the content?

Through control software. You upload content and schedule playback. Some systems support real-time updates.

Final Thoughts on Display LED Panel

The display LED panel market is growing fast. Technology improves. Prices fall. Now is a great time to invest.

Whether you need a permanent installation or rental units for events, preparation is key. Know your needs. Know your options. Choose a supplier you can trust.

A well-chosen display LED panel can transform any space. It attracts attention. It boosts your brand. Take your time. Make an informed choice.

Display LED Panel: 7 Things You Must Know Before Buying in 2026
