A Practical Guide to Choosing the Right LED Cabinet Display
Are you looking for an LED cabinet display? You are not alone. More businesses are choosing this product every year. But picking the right product can feel confusing. This guide makes it simple.
In this article, you will learn 7 key things. These will help you make a smart buying decision.
What Is an LED Cabinet Display?

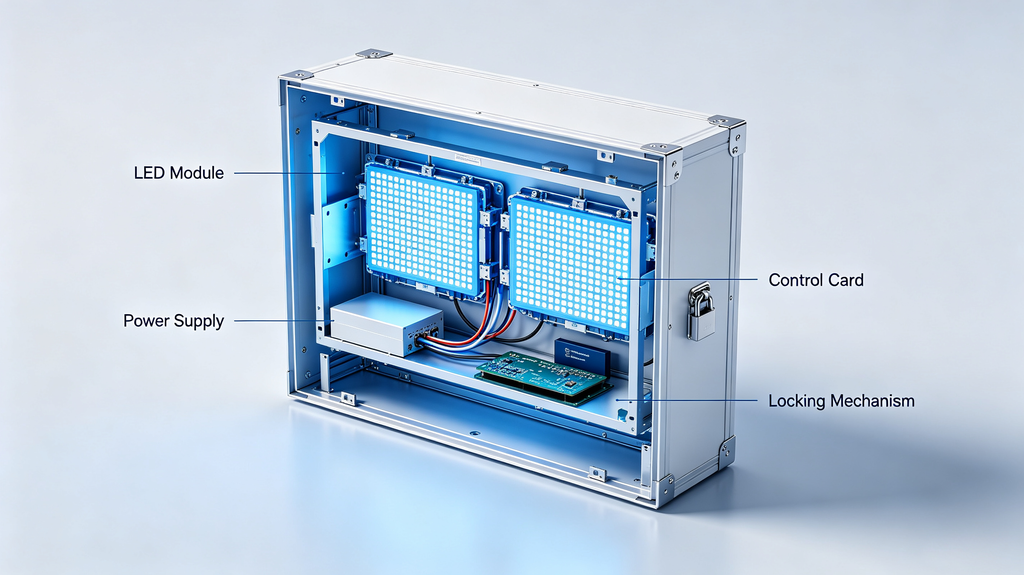

An LED cabinet display is a pre-assembled display unit. It contains LED modules, power supplies, and control cards all mounted in one enclosure.
It is designed for indoor or outdoor use. Common sizes include 500x500mm and 640x640mm. Multiple cabinets are locked together to form a complete screen.
Using an LED cabinet display speeds up installation. All components arrive pre-wired. Technicians simply connect the cabinets and power on.

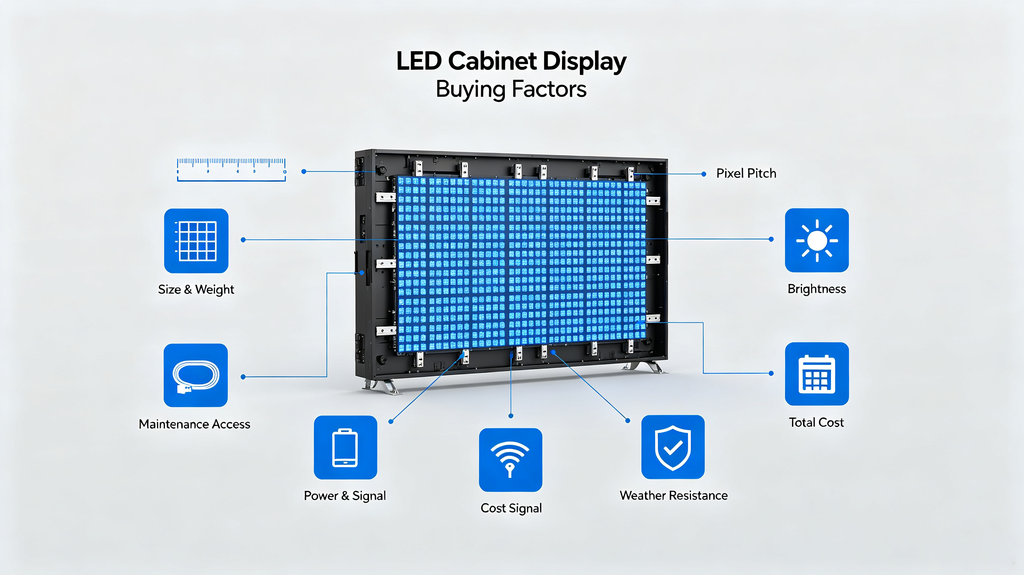

7 Key Things About LED Cabinet Display Before Buying
Size and Weight
Cabinet size determines how many units you need. Common sizes include 500x500mm and 640x640mm.
Larger cabinets reduce the number of seams. Smaller cabinets offer more flexibility in sizing.
Weight matters for mounting. A standard unit weighs 8 to 15 kg. Check whether your wall or structure can support the total weight.
Always confirm the cabinet dimensions before buying. This affects your installation plan.
Pixel Pitch
Pixel pitch is the distance between two pixels. A smaller number means a sharper image.
Choose a pixel pitch that matches your viewing distance. For close viewing, choose P2 or P3. For longer distances, P4 or P5 works better.
Match the pixel pitch to your actual viewing distance. This is the most important spec for image quality.
Brightness and Resolution
Brightness is measured in nits. A higher nit number means a brighter display.
Indoor LED cabinet display models offer 600 to 1,200 nits. Outdoor models offer 5,000 to 8,000 nits.
Resolution depends on both pixel pitch and cabinet size. Calculate the total resolution before buying.

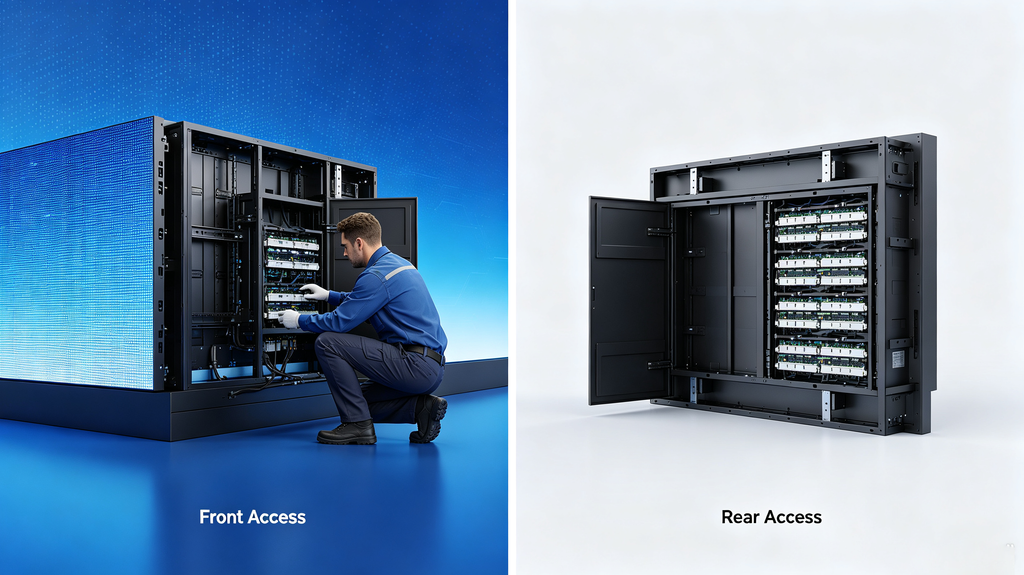

Maintenance Access
Maintenance access is a key feature. There are two main types.
Front access allows technicians to service from the front. This is ideal for wall-mounted screens.
Rear access requires space behind the cabinet. This is suitable for freestanding installations.
Choose the right access type for your setup. This affects both installation and ongoing maintenance costs.

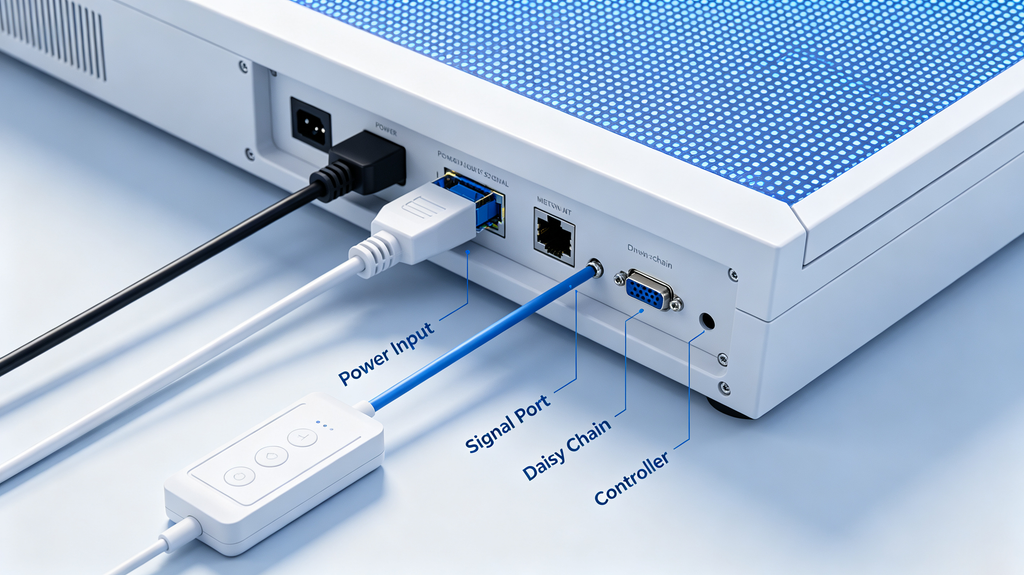

Power and Signal Connections
The LED cabinet display needs stable power and signal connections. Check the power consumption per cabinet.
Standard power input is 110V to 240V AC. Some cabinets support dual power redundancy.
Signal connections use standard Ethernet cables. Daisy-chain multiple cabinets together. A single controller can manage the entire screen.
Ask the supplier about controller compatibility before placing your order.
Weather Resistance
For outdoor use, weather resistance is critical.
Choose IP65 or higher rating. This means dust-tight and protected against water jets.
Outdoor cabinets must handle extreme temperatures. Look for built-in heating or cooling options for harsh climates.
Total Cost
The LED cabinet display itself is only part of the cost. Mounting structure adds to it. Installation labor can be significant.
A complete project often costs 2 to 3 times the cabinet price. Ask for a full itemized quote.
Common LED Cabinet Display Applications
This product is used across many industries. Here are the most common applications.
Conference rooms use these cabinets for large presentation screens. The fast assembly saves time on site.
Retail stores use them for feature walls and advertising displays. The seamless look creates a premium impression.
Broadcast studios use them for backdrop screens. High refresh rates prevent flickering on camera.
Control rooms use them for monitoring dashboards. The reliable design runs 24/7 without issues.
LED Cabinet Display FAQs
Q: What is the standard size of an LED cabinet display?
A: Common sizes are 500x500mm and 640x640mm. Some manufacturers offer custom sizes.
Q: How do I connect multiple cabinets?
A: Cabinets connect using built-in locking mechanisms. Power and signal cables daisy-chain from one cabinet to the next.
Q: What is the maintenance process?
A: Front-access cabinets allow quick module replacement from the front. Individual modules can be swapped without turning off the whole screen.
Q: What controllers are compatible?
A: Most models work with standard controllers. Popular brands include Novastar, Linsn, and Colorlight.
Final Thoughts on LED Cabinet Display
The LED cabinet display market is growing fast. Technology improves. Prices fall. Now is a great time to invest.
Know your project needs before buying. Check the cabinet size, pixel pitch, and maintenance access. Choose a supplier who offers good support and warranty.
A well-chosen LED cabinet display builds a stunning screen. It serves your business for years to come.
